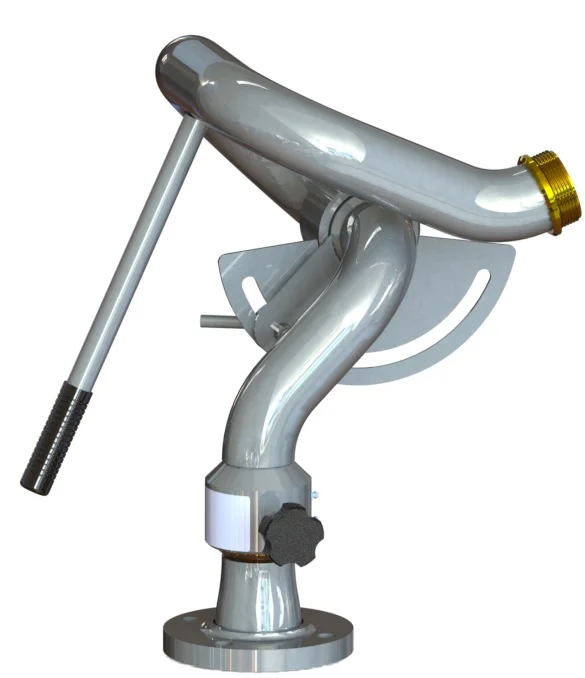

925000-polished,BL std_for web.jpg
925000-safety blue ,BL std_for web.jpg
925000-polished,BL shapertip.jpg

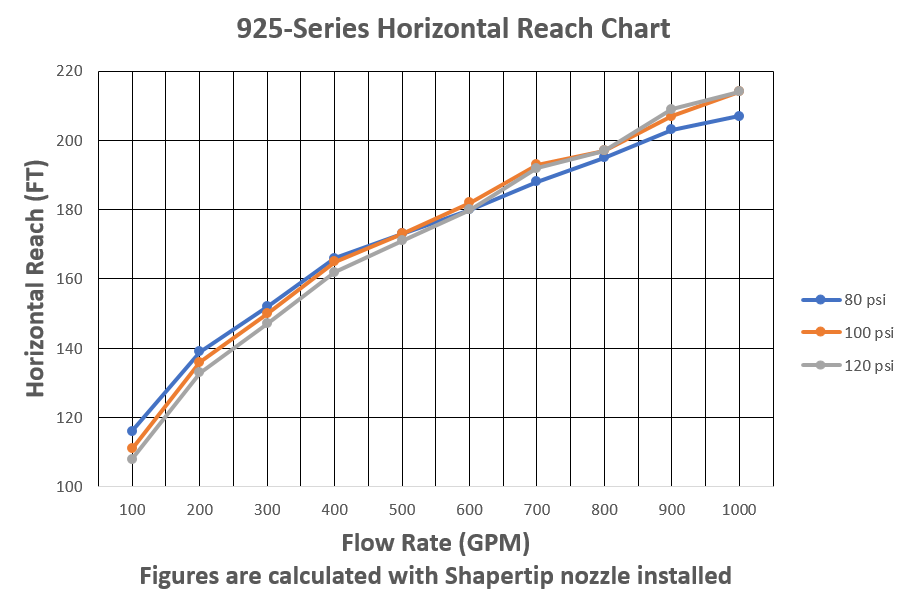

925 reach chart.PNG
925000-red,BL std_for web.jpg
925000-polished,BL std_for web.jpg
925000-safety blue ,BL std_for web.jpg
925000-polished,BL shapertip.jpg
925 reach chart.PNG

925 - 2.5-Inch Manual Snorkel Monitor

0.00

Our most popular Snorkel monitor, the 925 Snorkel Monitor it can discharge a jet of water straight down.  Used primarily in industrial cleaning applications, its capable of shooting 1000 gallons per minute, which makes quick work of loose sediment, caked on dirt and impacted sludge.

Add To Cart

Stang’s snorkel monitors are designed for industrial applications, such as tank cleaning, vehicle wash down basins and flocculation beds.  The 925 Snorkel Monitor fills the need of most industrial applications because it can manage flow rates between 150-1000 GPM with as little as 50 PSI, or as much as 150.  A remarkable tool, the 925 Snorkel will operate for years with regular maintenance.

TECHNOLOGY

Stang’s manufacturing approach is grounded in tradition and attention to detail, and the 925 Snorkel Monitor is where this this philosophy is displayed.  Using high-quality, seamless, 2.5-inch diameter schedule 40 piping, the 925 Snorkel consists of three sections: the intake base, lower ell, and the upper ell.  The intake base is available in many configurations and provides the foundation for the first swivel, the horizontal axis swivel.  This swivel rotates a full 360-degrees and is very well balanced.  The lower ell makes a 90° turn into the upper ell, which incorporates the vertical swivel and Stang’s proprietary (and legendary) curved waterway.  The vertical swivel has a +/- range of 45°/90° and is designed to spin clean while under pressure.

TYPICAL CONFIGURATION

2.5” raised face 150# ANSI flanged inlet, 2.5” NH outlet, tiller bar, Bladelock, carbon steel, powder coated red

OPTIONS

INLET

2.5” raised or flat face 150# ANSI flange
3.0” raised or flat face 150# ANSI flange
4.0” raised or flat face 150# ANSI flange
6.0” raised or flat face 150# ANSI flange
2.5” NPT male or female
Custom flanges available

OUTLET

2.5” NH thread (NST)
Custom threads or flanges available

HANDLE

Tiller bar

SWIVEL BRAKES

Dual lock knobs

MATERIAL

Carbon steel w/aluminum-bronze inner swivels and outlet thread
304 stainless steel w/aluminum-bronze inner swivels and outlet thread
316 stainless steel w/aluminum-bronze inner swivels and outlet thread

FINISH

Powder coat red internal and external
Polished (stainless steel only)
Custom powder coat color

FEATURE LIST

•    Heavy duty build
•    Lightweight
•    Small footprint
•    Full 360° horizontal rotation
•    135° total vertical range
•    Can discharge water straight down
•    Each water tight swivel has two rows of stainless steel bearings for stability and ease of motion
•    Two zerk fittings on both swivels for easy maintenance
•    Industrial powder coating for corrosion and abrasion protection
•    Hand welded joints
•    Hydrostatically tested to 300 PSI for 5-minutes, minimum
